Avery Dennison

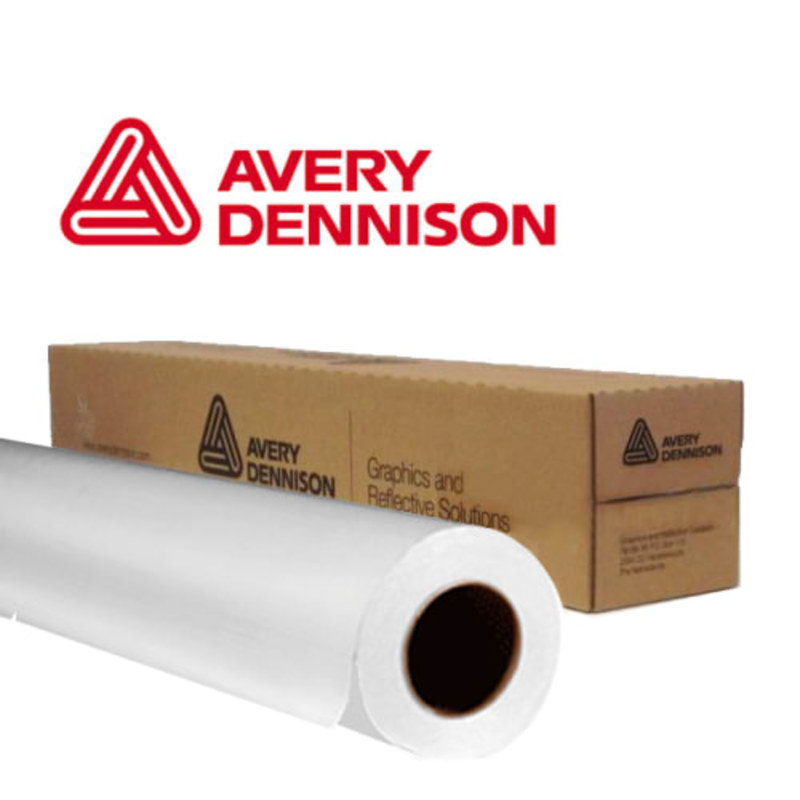

Avery Dennison DOL 1380Z Matte Overlaminate
Avery Dennison DOL 1380Z 1.3 mil ultra-conformable matte cast laminate for vehicle wraps, up to 4 yr. Designed for MPI 1105. 54" and 60" x 50 yd rolls.
$650.23
SKU ADOL1380Z-54
2 options: $650.23 – $722.48
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Matte vehicle wraps on Avery MPI 1105
- Complex curves and corrugations
- Glare-free fleet graphics
Not for
- Floor graphics
- Gloss wet-paint looks (use DOL 1360Z)
Overview
Avery Dennison DOL 1380Z is the matte member of the DOL 1300Z Series: an ultra-thin 1.3 mil premium cast vinyl overlaminate with a clear permanent acrylic adhesive on a 2 mil PET liner (changed from kraft in 02/2024). Avery rates it up to 4 years of vertical exposure.
The ultra-conformable face handles flat, riveted, corrugated and complex-curve surfaces for vehicle wraps, and Avery designed the series as a protective laminate for solvent, UV, latex and screen-printed inks. Common uses include fleet, vehicle, marine, backlit, POP, wall murals, windows and outdoor signage.
Use DOL 1380Z for matte wraps on Avery MPI 1105 SuperCast. For a gloss finish, choose DOL 1360Z.
Key features
- 1.3 mil ultra-thin cast vinyl, matte
- Ultra-conformable for complex curves
- Up to 4 yr vertical durability
- For solvent, UV, latex and screen-printed inks
- Designed for Avery MPI 1105
Specifications
| Film | Cast vinyl, clear |
|---|---|
| Thickness | 1.3 mil |
| Adhesive | Clear, permanent acrylic |
| Liner | 2 mil PET (transparent synthetic) |
| Finish | Matte |
| Durability | Up to 4 yr (vertical exposure) |
| Application surfaces | Flat, Flat with rivets, Corrugations, Complex curves (vehicle wraps) |
| Fire rating | ASTM E84 Type 1 or A |
| Compatible films | Avery Dennison MPI 1105 SuperCast |
| Applications | Fleet, Vehicle, Marine / watercraft, Backlit, POP / trade show, Wall murals, Window graphics, Outdoor signage |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Cast Laminate |
| Laminate tier | Premium (cast) |
Specifications shown for the selected option (54" x 50 yd).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
- Avery Dennison MPI 1105 SuperCast Easy Apply RS → Avery Dennison MPI 2903 Easy Apply Gloss Vinyl Film, Avery Dennison MPI 1105 SuperCast Easy Apply RS Film
Compare with
- Avery Dennison DOL 1360Z Gloss Overlaminate — Gloss DOL 1300Z version
- Avery Dennison DOL 1080Z Matte Overlaminate — Thicker 2.1 mil matte cast
- 3M Scotchcal Ultra-Matte Overlaminate 8915 — 3M ultra-matte cast
Documents
FAQ
How long does DOL 1380Z last?
Up to 4 years vertical exposure per Avery.
Can DOL 1380Z go over compound curves?
Yes. Avery lists complex curves (vehicle wraps) as an application surface for the DOL 1300Z Series.
Which print film is it for?
Avery designs the DOL 1300Z Series for MPI 1105 SuperCast.
