Avery Dennison

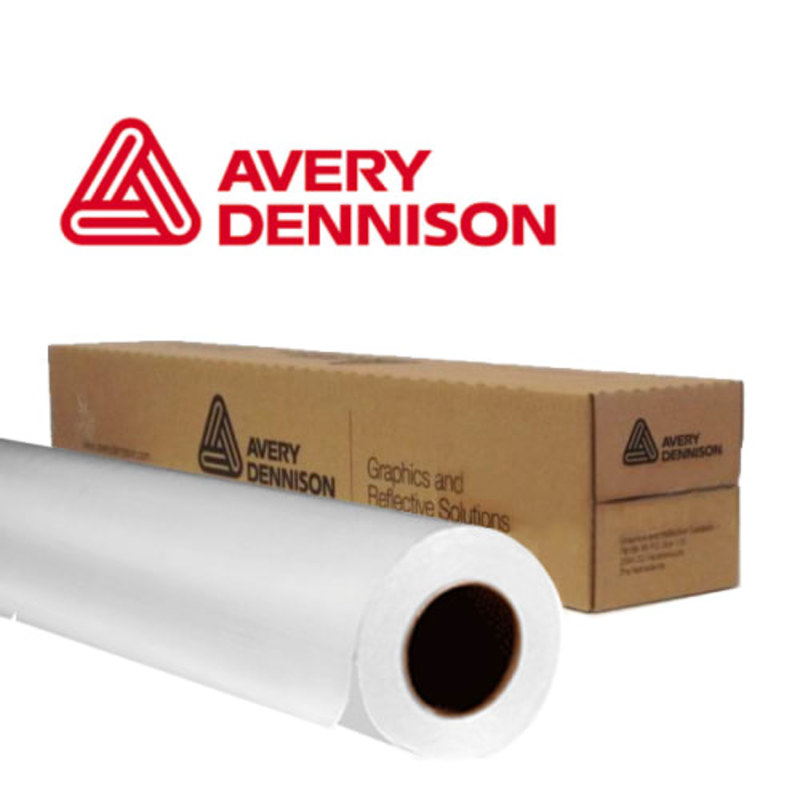

Avery Dennison DOL 1360Z Gloss Overlaminate
Avery Dennison DOL 1360Z 1.3 mil ultra-conformable optically clear gloss cast laminate for vehicle wraps, up to 4 yr. For MPI 1105. 54" and 60" x 50 yd.
$682.70
SKU ADOL1360Z-54
2 options: $682.70 – $758.55
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Full vehicle wraps on Avery MPI 1105
- Complex curves and corrugations
- Latex-printed wraps needing a gloss finish
Not for
- Floor graphics (use DOL 1060Z/1080Z)
- Budget flat signs
Overview
Avery Dennison DOL 1360Z is the optically clear, high-gloss member of the DOL 1300Z Series: a premium ultra-thin 1.3 mil cast vinyl overlaminate with a clear permanent acrylic adhesive on a 2 mil PET synthetic liner for a super-smooth, paint-like finish (90 GU at 60°). Avery rates it up to 4 years of vertical exposure.
Its ultra-conformable face handles flat, riveted, corrugated and complex-curve surfaces (vehicle wraps), and Avery designed it as a protective laminate for solvent, UV, latex and screen-printed inks. Common uses include fleet, vehicle, marine, backlit, POP, wall murals, window and outdoor signage.
DOL 1300Z Series is designed for Avery MPI 1105 SuperCast, making DOL 1360Z the go-to gloss laminate for full MPI 1105 wraps. For maximum deep-recess performance, compare DOL 1460Z.
Key features
- 1.3 mil ultra-thin, ultra-conformable cast vinyl
- Optically clear, high gloss
- Complex curves and corrugations (vehicle wraps)
- Up to 4 yr vertical durability
- For solvent, UV, latex and screen-printed inks
- Designed for Avery MPI 1105
Specifications
| Film | Cast vinyl, clear |
|---|---|
| Thickness | 1.3 mil |
| Adhesive | Clear, permanent acrylic |
| Liner | 2 mil PET (transparent synthetic) |
| Finish | Optically clear high gloss |
| Gloss 60 | 90 GU |
| Durability | Up to 4 yr (vertical exposure) |
| Application surfaces | Flat, Flat with rivets, Corrugations, Complex curves (vehicle wraps) |
| Fire rating | ASTM E84 Type 1 or A |
| Compatible films | Avery Dennison MPI 1105 SuperCast |
| Applications | Fleet, Vehicle, Marine / watercraft, Backlit, POP / trade show, Wall murals, Window graphics, Outdoor signage |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Cast Laminate |
| Laminate tier | Premium (cast) |
Specifications shown for the selected option (54" x 50 yd).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
- Avery Dennison MPI 1105 SuperCast Easy Apply RS → Avery Dennison MPI 2903 Easy Apply Gloss Vinyl Film, Avery Dennison MPI 1105 SuperCast Easy Apply RS Film
Compare with
- Avery Dennison DOL 1380Z Matte Overlaminate — Matte DOL 1300Z version
- Avery Dennison DOL 1460Z Gloss Overlaminate — 1400Z for the most difficult 3D wraps
- 3M Scotchcal Optically Clear Gloss Overlaminate 8518 — 3M cast gloss laminate
Documents
FAQ
Is DOL 1360Z good for full wraps?
Yes. Avery lists flat, riveted, corrugated and complex curves (vehicle wraps) as application surfaces.
How long does DOL 1360Z last?
Up to 4 years vertical exposure per Avery's data sheet.
Is it compatible with latex prints?
Avery designed the DOL 1300Z Series for solvent, UV, latex and screen-printed inks.
