3M
3M Envision Luster Wrap Overlaminate 8549L
Cast Laminate3M Envision 8549L 2 mil non-PVC luster wrap overlaminate, 9 yr expected life, deep channels and textured walls. For IJ180Cv3 and IJ180mC. 54" x 50 yd.
$990.50
3M
3M Envision Gloss Wrap Overlaminate 8548G
3M Envision 8548G 2 mil non-PVC gloss wrap overlaminate, 9 yr expected life, deep channels, concave curves. For IJ180Cv3/IJ180mC. 54" and 60" x 50 yd.
$990.50
SKU 3M8548G
2 options: $990.50 – $1,100.55
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Non-PVC wrap systems
- Long-life gloss wraps on 3M IJ180Cv3 / IJ180mC-10
- Deep channels and textured walls
Not for
- Budget or short-term graphics
- Flat signs where calendered is enough
Overview
3M Envision Gloss Wrap Overlaminate 8548G is a 2 mil high-performance non-PVC gloss overlaminate on a polyester liner. 3M lists excellent conformability and lifting resistance, good scratch resistance, excellent UV protection and an expected performance life of nine years (unwarranted, flat vertical outdoor surface), plus a horizontal warranty.
It handles flat, riveted, corrugated, simple and compound curves, deep channels and concave surfaces, and 3M recommends it for fleet, vehicle wraps, watercraft, transit, signage, awnings, smooth and textured walls, and windows and glass. 3M lists it for inkjet films including IJ180Cv3 and IJ180mC-10 from our Wrap Vinyl range.
Choose 8548G when a customer wants a non-PVC laminate or maximum durability on a 3M wrap. For the luster version, see 8549L.
Key features
- 2 mil non-PVC gloss wrap overlaminate
- Up to 9 yr expected performance life; horizontal warranty
- Excellent conformability and lifting resistance
- Good scratch resistance, excellent UV protection
- Conforms to deep channels and concave surfaces
- Listed for 3M IJ180Cv3 and IJ180mC-10
Specifications
| Film | Non-PVC, clear |
|---|---|
| Thickness | 2 mil |
| Adhesive | Clear, pressure-sensitive, permanent |
| Liner | Polyester |
| Finish | Gloss |
| Durability | Up to 9 yr expected performance life (unwarranted, flat vertical outdoor) |
| Application surfaces | Flat, Flat with rivets, Corrugated, Simple curves, Compound curves, Deep channels, Concave surfaces |
| Compatible films | 3M IJ180Cv3, 3M IJ180mC-10 |
| Applications | Fleet, Vehicle wraps, Watercraft, Transit, Labels, Thermoformable, Signage, Awning, Smooth and textured walls, Windows and glass |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Cast Laminate |
| Laminate tier | Premium (cast) |
Specifications shown for the selected option (54" x 50 yd).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- 3M Envision Luster Wrap Overlaminate 8549L — Envision luster version
- 3M Scotchcal Optically Clear Gloss Overlaminate 8518 — PVC cast gloss, 8 yr
Documents
FAQ
Is 8548G PVC?
No. 3M describes the Envision overlaminates as high-performance non-PVC films.
How long does 8548G last?
3M lists an expected performance life of nine years (unwarranted, flat vertical outdoor surface).
Which films can it go on?
3M lists inkjet films including IJ180Cv3, IJ180C, IJ180-10, IJ180mC-10 and IJ380Cv3, among others.
More Laminate
3M
3M Gloss Wrap Overlaminate 8428G
Cast Laminate3M 8428G 1.2 mil cast gloss wrap overlaminate, lighter than 8518, 8 yr expected life. 3M's matched laminate for IJ280, MCS Warranty. 54"/60" x 50 yd.
from $954.86
3M
3M Scotchcal Gloss Overlaminate 8508
Calendered Laminate3M Scotchcal 8508 2.6 mil gloss calendered overlaminate, up to 4 yr, for flat and simple-curve graphics. Matched to 3M 40C and IJ35C. 54" and 60" x 50 yd.
from $502.80
3M
3M Scotchcal Luster Overlaminate 8509
Calendered Laminate3M Scotchcal 8509 3 mil luster calendered overlaminate, up to 4 yr, UL 410 slip rated for floor graphics. For 3M 40C and IJ35C. 54" and 60" x 50 yd.
from $502.80
3M
3M Scotchcal Luster Overlaminate 8519
Cast Laminate3M Scotchcal 8519 2 mil cast luster overlaminate, 3M's workhorse wrap laminate, 8 yr expected life. For IJ180Cv3, IJ180mC and 40C. 54" and 60" x 50 yd.
from $929.37
3M
3M Scotchcal Matte Overlaminate 8510M
Calendered Laminate3M Scotchcal 8510M 3.5 mil matte calendered overlaminate, up to 4 yr, UL 410 slip rated for floors. Glare-free for walls and signs. 54" and 60" x 50 yd.
from $488.16
3M
3M Scotchcal Matte Overlaminate 8520
Cast Laminate3M Scotchcal 8520 2 mil cast matte overlaminate, glare-free, UL 410 slip rated for floors, 8 yr expected life. For IJ180Cv3/IJ180mC. 54" and 60" x 50 yd.
from $971.19
3M
3M Scotchcal Optically Clear Gloss Overlaminate 8518
Cast Laminate3M Scotchcal 8518 2 mil cast gloss overlaminate, wet-paint look, resists fuel vapors, 8 yr expected life. For IJ180Cv3/IJ180mC wraps. 54" and 60" x 50 yd.
from $916.58
3M
3M Scotchcal Optically Clear Overlaminate 8914
Optically Clear Laminate3M Scotchcal 8914 2 mil optically clear cast overlaminate that seals perforated window film against moisture and dirt. 8 yr expected life. 54" x 50 yd.
$1,614.21
3M
3M Scotchcal Ultra-Matte Overlaminate 8915
Cast Laminate3M Scotchcal 8915 2 mil cast ultra-matte overlaminate, gloss <10 for maximum glare reduction, 8 yr expected life. For wraps and walls. 54" and 60" x 50 yd.
from $972.80
Avery Dennison
Avery Dennison DOL 1060Z Gloss Overlaminate
Cast LaminateAvery Dennison DOL 1060Z 2.1 mil high-gloss cast overlaminate, up to 5 yr, UL 410 floor rated. Designed for MPI 1105 SuperCast. 54" and 60" x 50 yd rolls.
from $814.32
Avery Dennison

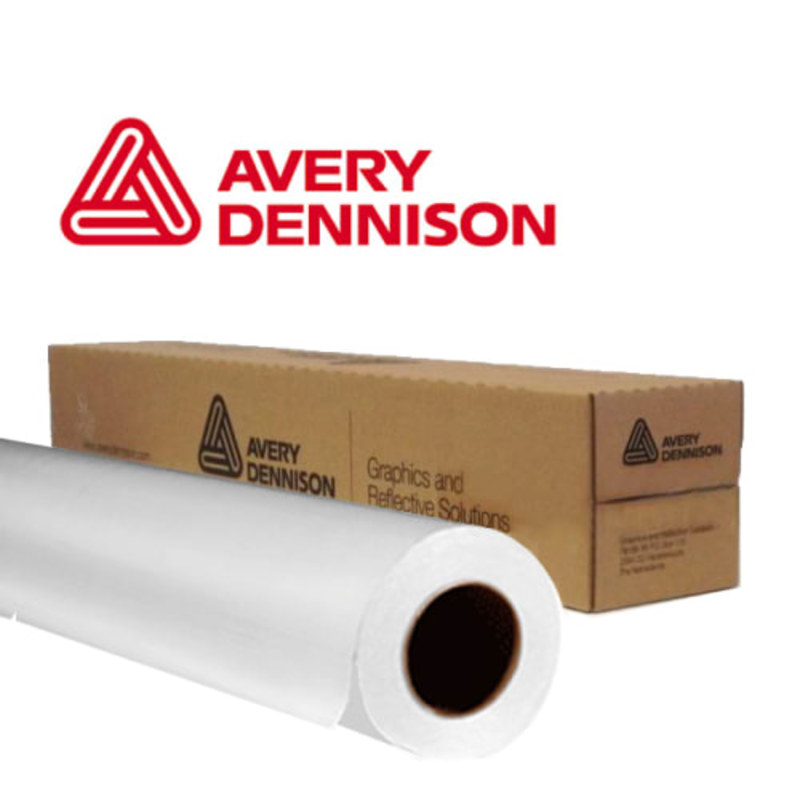

Avery Dennison DOL 1080Z Matte Overlaminate
