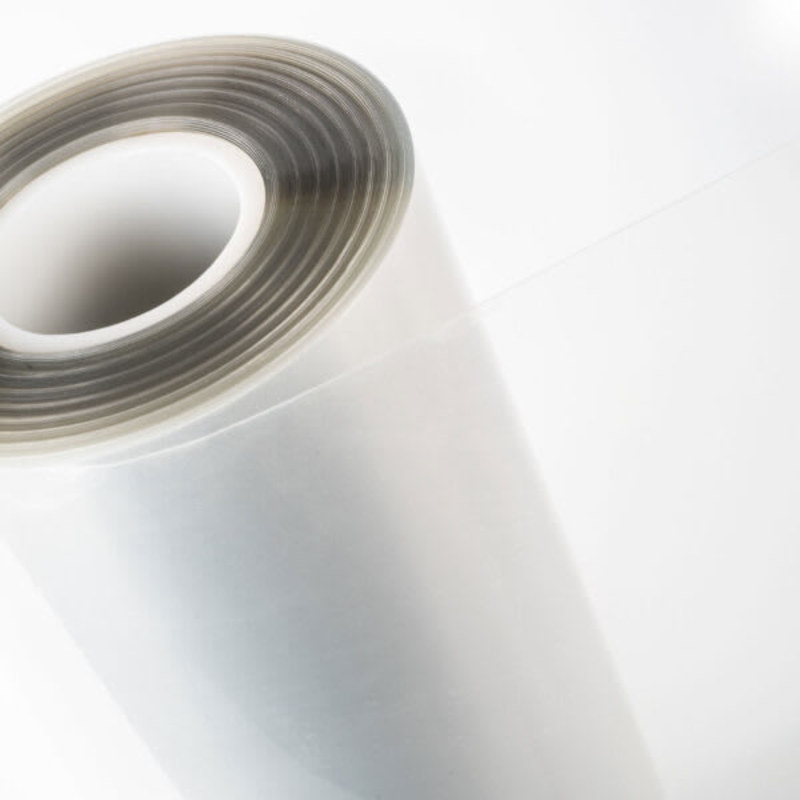

General Formulations 400 Series Overlaminate
General Formulations 400 (gloss) and 402 (matte) 3 mil calendered UV laminate, up to 5 yr outdoors. Pairs with GF 201 & 203. 54" and 60" x 50 yd rolls.
$478.76
SKU 400-54
4 options: $478.76 – $697.67
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- GF 201 & 203 prints
- Long-term flat signage and displays
- Translucent and POP graphics
Not for
- Vehicle wraps over curves
- Short-term jobs where an economy laminate is enough
Overview
The General Formulations 400 Series is a 3.0 mil clear calendered (intermediate) vinyl UV laminate with a permanent emulsion acrylic adhesive on a smooth 53# liner. GF offers it as 400 gloss, 401 luster and 402 matte; we stock 400 gloss and 402 matte in 54" and 60" x 50 yd. GF lists outdoor durability up to 5 years.
GF designs the 400 Series to protect digital and screen-printed images from UV degradation, abrasion and moisture for exhibit, display, POP, translucent and general signage, and for transit graphics on flat or simple surfaces. It is applied cold, without heat, and is intended for flat surfaces or very slight curves.
The 400 Series is a recommended laminate for GF 201 and 203 printable vinyl in our range. For vehicle wraps, GF points you to a wrap laminate instead; see GF 231 AutoMark or a cast laminate.
Key features
- 3.0 mil clear intermediate calendered vinyl
- UV, abrasion and moisture protection
- Outdoor durability up to 5 yr
- 400 gloss or 402 matte
- Cold laminating, permanent acrylic adhesive
- Flat or very slight curves
Specifications
| Film | Calendered (intermediate) PVC, clear |
|---|---|
| Thickness | 3.0 mil |
| Adhesive | Clear, emulsion acrylic, permanent |
| Liner | 53# white PE-coated kraft |
| Finish | Gloss |
| Durability | Up to 5 yr outdoor |
| Application surfaces | Flat, Very slight curves |
| Application temperature | Above 40°F |
| Service temperature | -40°F to 180°F |
| Compatible films | GF 201 & 203 |
| Applications | POP / retail, Translucent, Transit (flat / simple), General signage, Outdoor (long term) |
| Width | 54" |
| Roll length | 50 yd |
| Gloss 60 | >70 |
| Sub category | Calendered Laminate |
| Laminate tier | Intermediate (calendered) |
Specifications shown for the selected option (54" x 50 yd, Gloss).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- General Formulations 231 AutoMark Overlaminate — GF wrap laminate for vehicles
- 3M Scotchcal Gloss Overlaminate 8508 — 3M calendered gloss laminate
- Briteline Shield UV Overlaminate — Value 3 mil UV calendered laminate
Documents
FAQ
How long does GF 400 last outdoors?
General Formulations lists outdoor durability up to 5 years.
What finishes are available?
GF makes 400 gloss, 401 luster and 402 matte. We stock 400 gloss and 402 matte.
Can I use it on vehicles?
GF says the 400 Series is ideal for flat or very slight curves; use a wrap laminate for vehicles.
Which vinyl does it pair with?
In our range, GF 201 and 203 printable vinyl list the GF 100 or 400 Series as the recommended laminate.
