Briteline

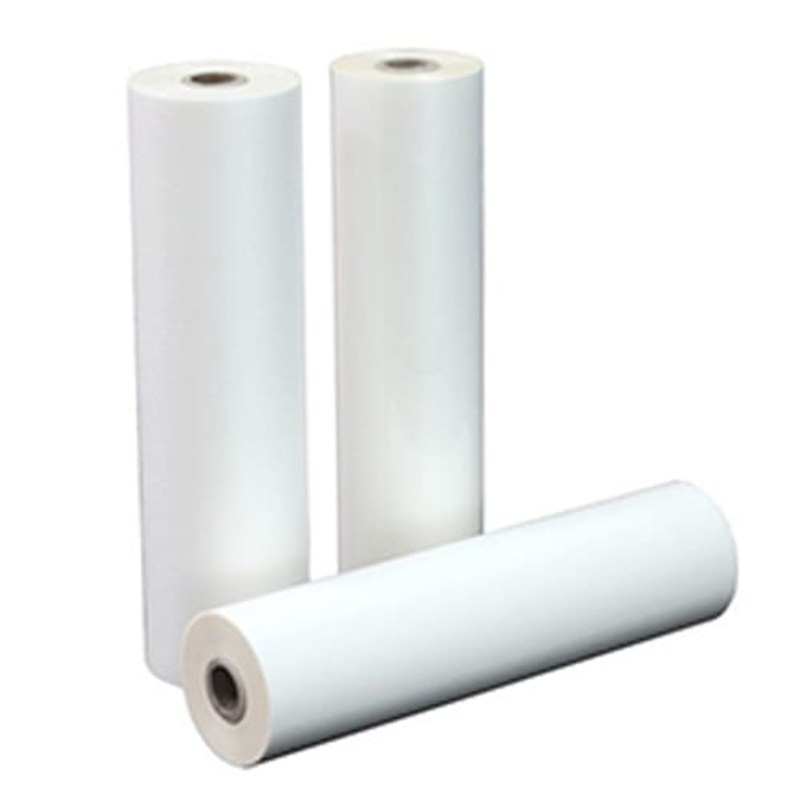

Briteline Shield UV Overlaminate
Briteline Shield UV 3 mil calendered UV laminate, up to 4 yr exterior. For Briteline Duration X and Translucent. Gloss or matte, 54" and 60" x 50 yd.
$386.88
SKU OLUV-GLS54
4 options: $386.88 – $421.53
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Outdoor flat signs
- Briteline Duration X prints
- Briteline Translucent lightbox graphics
Not for
- Vehicle wraps (use WrapCAST overlaminate)
Overview
Briteline Shield UV Overlaminate is a 3 mil UV-resistant calendered PVC laminate with a permanent acrylic adhesive on a smooth 53# kraft liner. It is applied cold and protects prints from UV degradation, abrasion and moisture, with expected exterior exposure of up to 4 years on vertical surfaces under normal conditions.
Briteline's application chart pairs Shield UV with its medium- to long-term films, including Briteline Duration X IM3201X/IM3203X air-egress vinyl and Briteline Translucent film for lit signs, both in our range. Briteline designs it for exhibit and display graphics, interior or exterior.
We stock gloss and matte in 54" and 60" x 50 yd. For indoor short-term work Briteline Shield is less expensive, and for vehicles use Briteline WrapCAST overlaminate.
Key features
- 3 mil calendered PVC UV overlaminate
- Up to 4 yr exterior (vertical)
- UV, abrasion and moisture protection
- Permanent acrylic adhesive, cold applied
- Gloss or matte finish
- Pairs with Briteline Duration X and Translucent
Specifications
| Film | Calendered PVC, clear, UV-resistant |
|---|---|
| Thickness | 3 mil |
| Adhesive | Clear, permanent acrylic, pressure-sensitive |
| Liner | 53# kraft |
| Finish | Gloss |
| Durability | Up to 4 yr exterior (vertical) |
| Application surfaces | Flat |
| Min application temperature | 40°F |
| Service temperature | -40°F to 180°F |
| Compatible films | Briteline Duration X IM3201X / IM3203X, Briteline Translucent BL-T54150 |
| Applications | Outdoor signage, Exhibit and display, Illuminated signs |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Calendered Laminate |
| Laminate tier | Intermediate (calendered) |
Specifications shown for the selected option (54" x 50 yd, Gloss).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- Briteline Shield Overlaminate Film — Indoor/short-term version
- General Formulations 400 Series Overlaminate — GF 3 mil UV calendered, up to 5 yr
- ORAGUARD 210 PVC Laminating Film — ORAFOL calendered, up to 4 yr
FAQ
How long does Shield UV last outside?
Briteline lists expected exterior exposure of up to 4 years on vertical surfaces under normal conditions.
Which Briteline films pair with it?
Briteline recommends Shield UV for Duration X IM3201X/IM3203X and for Briteline Translucent film.
Is it heat applied?
No, it is a cold laminate; the minimum application temperature is 40°F.
