Briteline

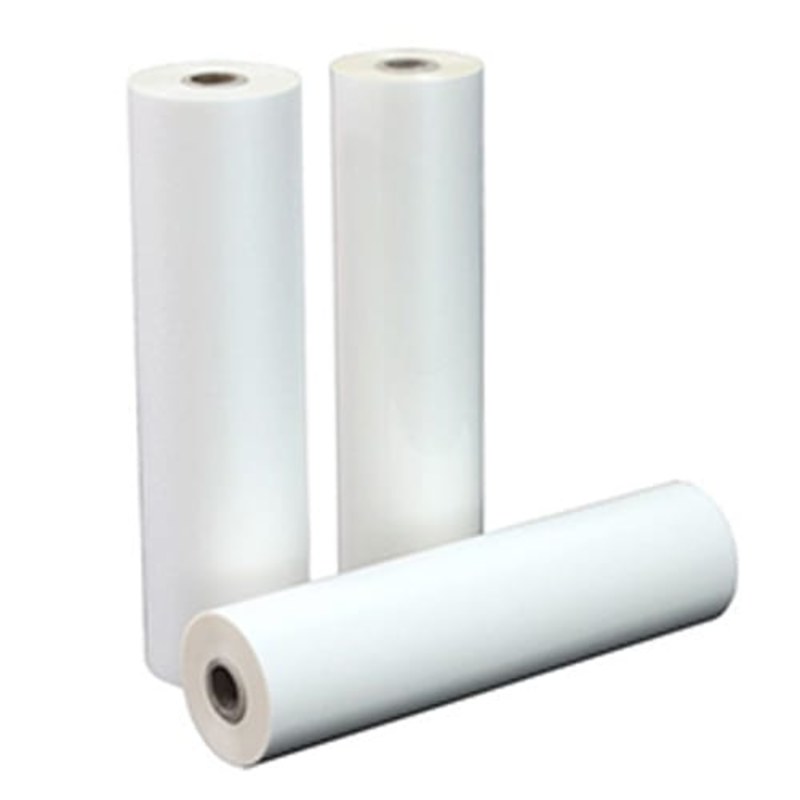

Briteline Shield Overlaminate Film
Briteline Shield 3 mil calendered PVC laminate, up to 3 yr indoors. Value protection for Briteline eSeries, displays. Gloss or matte, 54" and 60" x 150'.
$323.21
SKU OL-GLS54
4 options: $315.73 – $404.13
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Indoor exhibit and display graphics
- Briteline eSeries IM2201/IM2203 prints
- Lowest-priced scuff protection
Not for
- Long-term outdoor signs (use Shield UV)
- Vehicles or curves
Overview
Briteline Shield Overlaminate is a 3 mil calendered PVC laminate with a permanent acrylic adhesive on a smooth 53# kraft liner, applied cold without heat. It protects digital prints from abrasion, moisture and handling, and is rated up to 3 years indoors (about 1 year outdoors) under normal conditions.
It is the value laminate for short-term Briteline films: Briteline's own application chart lists Shield gloss as the recommended laminate for Briteline eSeries IM2201 and IM2203 printable vinyl. Briteline designs it to protect digital and screen-printed images for exhibit and display graphics. We stock gloss and matte in 54" and 60" x 150 ft rolls.
For outdoor graphics that need to last, choose Briteline Shield UV (up to 4 years exterior). For vehicles, use Briteline WrapCAST overlaminate.
Key features
- 3 mil calendered PVC overlaminate
- Permanent acrylic adhesive, cold applied
- Up to 3 yr indoor durability
- Abrasion and moisture protection
- Gloss or matte finish
- Recommended for Briteline eSeries
Specifications
| Film | Calendered PVC, clear |
|---|---|
| Thickness | 3 mil |
| Adhesive | Clear, permanent acrylic, pressure-sensitive |
| Liner | 53# kraft |
| Finish | Gloss |
| Durability | Up to 3 yr indoor; about 1 yr outdoor |
| Application surfaces | Flat |
| Min application temperature | 40°F |
| Service temperature | -40°F to 180°F |
| Compatible films | Briteline eSeries IM2201 / IM2203 |
| Applications | Exhibit and display graphics, Indoor signage |
| Width | 54" |
| Roll length | 150 ft |
| Sub category | Calendered Laminate |
| Laminate tier | Intermediate (calendered) |
Specifications shown for the selected option (54" x 150', Gloss).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- Briteline Shield UV Overlaminate — UV version, up to 4 yr exterior
- ORAGUARD 200 Economy PVC Laminating Film — ORAFOL economy laminate
FAQ
How long does Briteline Shield last?
Up to 3 years indoors; Briteline lists about 1 year outdoors.
Shield or Shield UV?
Shield is for indoor and short-term work. Shield UV adds UV resistance and is rated up to 4 years on exterior vertical surfaces.
What roll size is it?
54" and 60" x 150 ft, in gloss or matte.
