Orafol

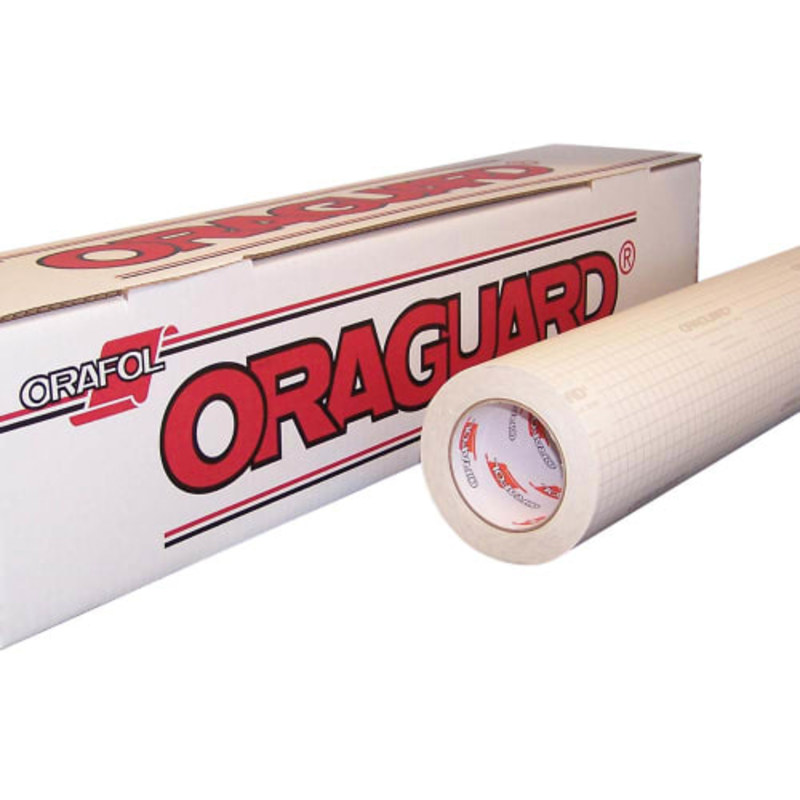

ORAGUARD 200 Economy PVC Laminating Film
ORAGUARD 200 2.5 mil economy calendered PVC laminate, 2 yr min. life plus 1 yr UV extension. Flat use with ORAJET 3621/3640. Gloss or matte, 54"/60".
$339.43
SKU O200G-54
4 options: $339.43 – $407.65
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Lowest-priced protection for short-term flat prints
- ORAJET 3621, 3640, 3620 and 3164 prints
- Short-term indoor and outdoor flat prints
Not for
- Curves or vehicles (flat application only)
- Signs that must last more than about 2 to 3 years
Overview
ORAGUARD 200 is ORAFOL's economy cold laminate: a 2.5 mil soft calendered PVC film with a clear, water-based permanent adhesive on a 55# silicone-coated paper liner. ORAFOL rates it for a minimum life expectancy of 2 years on vertical surfaces, with a UV protection extension factor of one year.
ORAFOL designs it as an economy cold laminate for protecting indoor and outdoor digital prints, for flat application only. ORAFOL recommends it with ORAJET 3641, 3640, 3628, 3621, 3620, 3268, 3164 and 3161DT. We stock it in gloss and matte, 54" and 60" x 50 yd.
Choose ORAGUARD 200 when price matters most and the graphic is short-term. For up to 4 years on flat surfaces step up to ORAGUARD 210, and for curves or vehicles use a cast laminate such as ORAGUARD 290.
Key features
- 2.5 mil soft calendered PVC overlaminate
- Clear, water-based permanent adhesive; cold applied
- Minimum 2 yr life expectancy (vertical)
- UV protection extension factor of 1 year
- Flat application only
- Gloss or matte finish
Specifications
| Film | Calendered PVC, clear |
|---|---|
| Thickness | 2.5 mil |
| Adhesive | Clear, water-based, pressure-sensitive, permanent |
| Liner | 55# silicone-coated paper |
| Finish | Gloss |
| Durability | Min. 2 yr (vertical) |
| Uv extension factor | +1 yr |
| Application surfaces | Flat |
| Min application temperature | 50°F |
| Temperature resistance | -40°F to +176°F |
| Fire rating | ASTM E84 Class A |
| Compatible films | ORAJET 3621, ORAJET 3640, ORAJET 3620, ORAJET 3164, ORAJET 3641 / 3628 / 3268 / 3161DT |
| Applications | Indoor digital prints, Outdoor digital prints (flat application only) |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Calendered Laminate |
| Laminate tier | Intermediate (calendered) |
Specifications shown for the selected option (54" x 50 yd, Gloss).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- ORAGUARD 210 PVC Laminating Film — Step-up calendered laminate, up to 4 yr
- Avery Dennison DOL 3060 Gloss Overlaminate — Avery's promotional calendered laminate, up to 2 yr
- Briteline Shield Overlaminate Film — Value 3 mil calendered laminate
Documents
FAQ
How long does ORAGUARD 200 last?
ORAFOL lists a minimum life expectancy of 2 years on vertical surfaces, plus a UV protection extension factor of one year.
Can ORAGUARD 200 go on vehicles?
No. ORAFOL specifies flat application only. Use a cast laminate such as ORAGUARD 290 for curves.
Which ORAJET films does it pair with?
ORAFOL recommends it with ORAJET 3641, 3640, 3628, 3621, 3620, 3268, 3164 and 3161DT.
Does it need heat to apply?
No. It is a cold laminate with a pressure-sensitive adhesive; the minimum application temperature is 50°F.
