Orafol

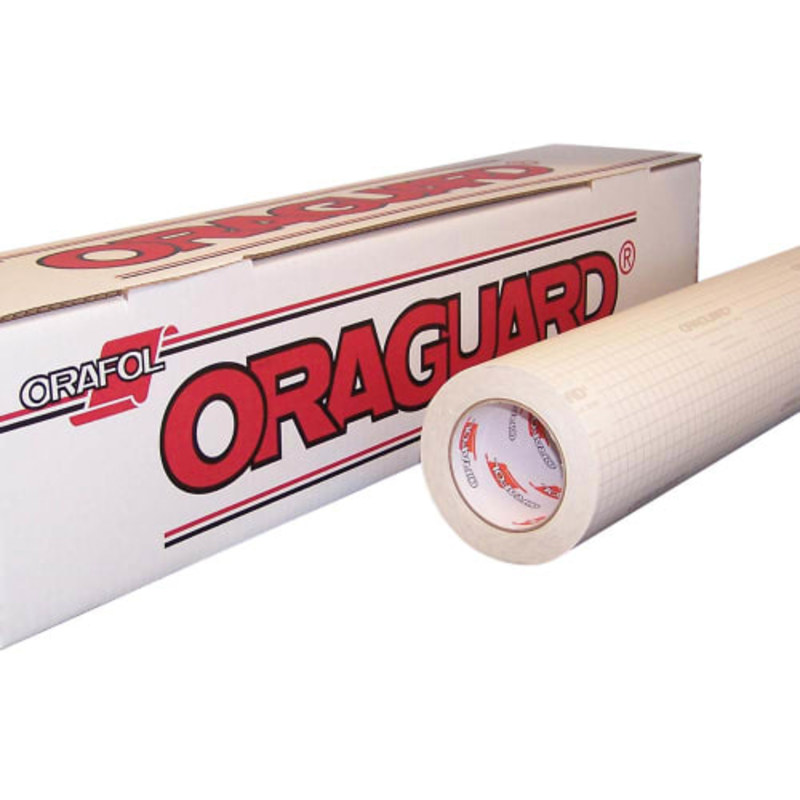

ORAGUARD 290GF Optically Clear Laminating Film
ORAGUARD 290GF 2 mil optically clear cast PVC laminate, 8 yr min. life, 4 yr UV extension. Ideal for window perf and ORAJET 3951RA. 54" and 60" x 50 yd.
$1,015.64
SKU O290GF-54
2 options: $1,015.64 – $1,149.84
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Choose an option
Is it right for your job?
Best for
- Perforated window graphics
- ORAJET 3951RA and 3551RA prints needing top clarity
- Long-term outdoor graphics
Not for
- Budget flat signs (use ORAGUARD 210/215)
Overview
ORAGUARD 290GF is a 2 mil premium optically clear cast PVC laminating film with a clear, solvent-based permanent adhesive on a 1.6 mil silicone-coated polyester liner. ORAFOL rates it for a minimum life expectancy of 8 years on vertical surfaces with a UV protection extension factor of four years.
It is a cold laminate for long-term indoor and outdoor digital prints, specially suited to perforated window graphics and other jobs where the highest clarity and transparency are needed. ORAFOL recommends it with ORAJET 3951, 3951RA, 3951HT, 3850, 3751RA, 3551, 3551RA, 3551DT, 3109 and 3105HT, and ORALITE 5600 and 5650RA.
In our range it pairs with ORAJET 3951RA and 3551RA, and it is the optically clear choice for window perf. For opaque wraps where optical clarity is not needed, ORAGUARD 290 is less expensive.
Key features
- 2 mil optically clear premium cast PVC
- Min. 8 yr life expectancy (vertical)
- UV protection extension factor of 4 years
- Polyester liner for maximum clarity
- Ideal for perforated window graphics
- Recommended with ORAJET 3951RA and 3551RA
Specifications
| Film | Cast PVC, optically clear |
|---|---|
| Thickness | 2 mil |
| Adhesive | Clear, solvent-based, permanent |
| Liner | 1.6 mil silicone-coated polyester |
| Finish | Gloss |
| Durability | Min. 8 yr (vertical) |
| Uv extension factor | +4 yr |
| Application surfaces | Flat, Simple curves |
| Min application temperature | 46°F |
| Temperature resistance | -58°F to +230°F |
| Fire rating | ASTM E84 Class A |
| Compatible films | ORAJET 3951RA, ORAJET 3551RA, ORAJET 3951 / 3951HT / 3850 / 3751RA / 3551 / 3551DT / 3109 / 3105HT, ORALITE 5600 / 5650RA |
| Applications | Perforated window graphics, Long-term indoor and outdoor graphics |
| Width | 54" |
| Roll length | 50 yd |
| Sub category | Optically Clear Laminate |
| Laminate tier | Premium (cast) |
Specifications shown for the selected option (54" x 50 yd).
Printer compatibility
Laminates are not printed. The 54" or 60" rolls cover prints from the 64" HP Latex 570. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- ORAGUARD 290 Premium Cast PVC Laminating Film — Standard 290 cast laminate for opaque wraps
- 3M Scotchcal Optically Clear Overlaminate 8914 — 3M optically clear perf laminate
- Briteline WrapCAST Overlaminate Film - 2 mil — Briteline Optically Clear option
Documents
FAQ
What is the difference between 290 and 290GF?
290GF is ORAFOL's optically clear version on a polyester liner, designed for applications like window perf where maximum clarity is needed.
How long does 290GF last?
ORAFOL rates a minimum life expectancy of 8 years (vertical) with a 4-year UV extension factor.
Which ORAJET films does it pair with?
ORAFOL recommends ORAJET 3951, 3951RA, 3951HT, 3850, 3751RA, 3551, 3551RA, 3551DT, 3109 and 3105HT.
