Duratex

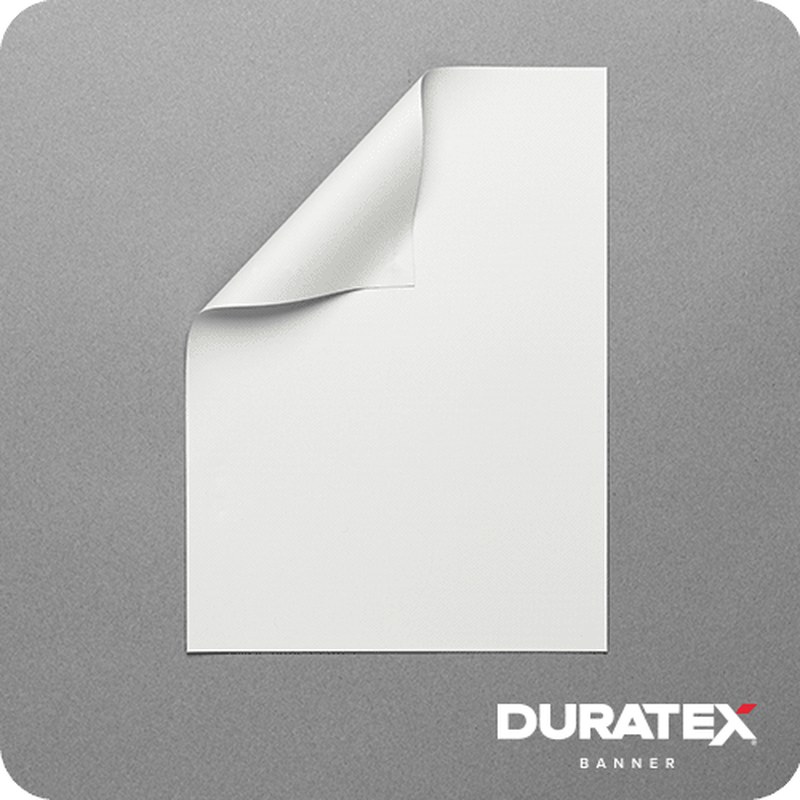

Duratex 13oz Double-Sided Smooth Banner
Duratex 13oz double-sided smooth blockout banner, opaque, NFPA 701. For pole and hanging banners seen from both sides. Use platen protectors on latex.
$402.06
Duratex

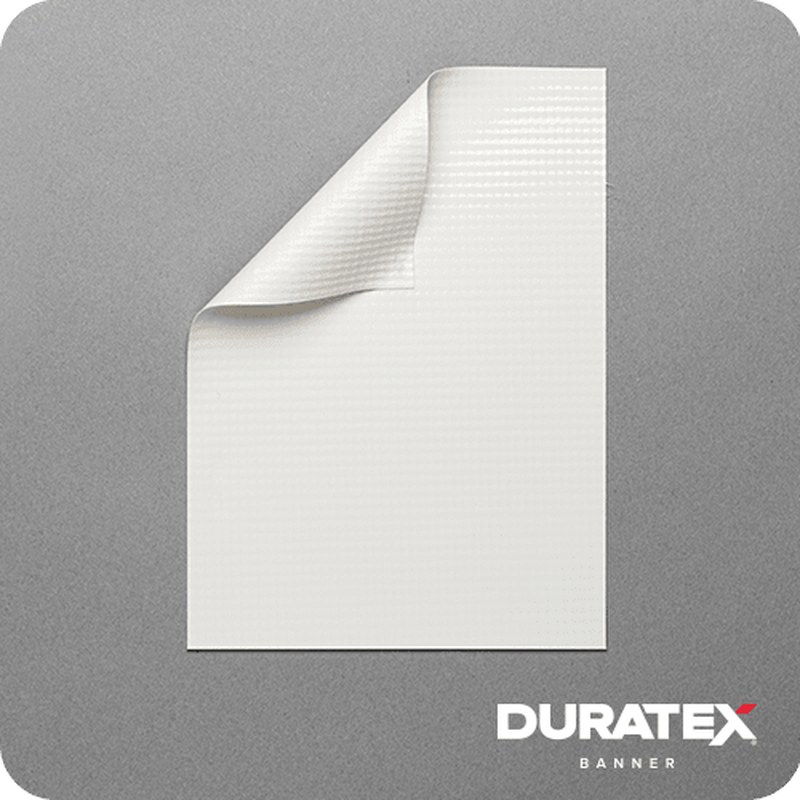

Duratex 13oz Reverse Wound Banner
Duratex 13oz single-sided scrim banner, reverse wound, 1000x1000 denier, NFPA 701. Indoor/outdoor without lamination. 54" x 164' roll.
$272.25
SKU DTXB54164G
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Is it right for your job?
Best for
- Event, retail and construction banners
- Printers that expect print-side-in rolls
Not for
- Double-sided banners
- High-wind locations (use mesh)
Overview
Duratex 13oz Reverse Wound Banner is a single-sided polyester-scrim vinyl banner with a specially formulated topcoat for consistent image quality and color. It is reverse wound (print side in), 1000 x 1000 denier with a 9 x 9 scrim, NFPA 701 fire retardant, and designed for indoor and outdoor durability without lamination.
It finishes easily with grommets, sewing or hem tape, and the quick-drying surface resists abrasion, water and smudging. It is the standard choice for event, retail and construction banners.
Choose reverse wound if your printer or workflow expects print-side-in rolls; choose the forward-wound version otherwise. For double-sided or blockout banners see the Duratex double-sided smooth banners; for windy locations use mesh.
Key features
- 13 oz single-sided polyester-scrim banner
- Reverse wound (print side in)
- 1000 x 1000 denier, 9 x 9 scrim
- NFPA 701 fire retardant
- Indoor/outdoor without lamination
Specifications
| Banner type | Polyester scrim, single-sided, reverse wound |
|---|---|
| Weight | 13 oz |
| Thickness | 13 mil |
| Denier | 1000 x 1000 |
| Scrim | 9 x 9 |
| Fire rating | NFPA 701 |
| Color | White |
| Print compatibility | Latex, Solvent, Eco-solvent, UV-curable |
| Width | 54" |
| Roll length | 164 ft |
Printer compatibility
The HP Latex 570 is a 64" roll printer, so this 54" roll loads normally; the manufacturer lists latex compatibility. Use a banner media preset or the maker's profile and test.
Recommended laminate
- Not required
Compare with
- Duratex 13oz Forward Wound Banner — Forward wound version
- Duratex 8oz Mesh Banner with Liner — Mesh for windy areas
- Duratex 13oz Double-Sided Smooth Banner — Double-sided blockout
FAQ
What does reverse wound mean?
The print side faces in on the roll.
Do I need to laminate it?
No, it is designed for indoor and outdoor durability without lamination.
Is it fire rated?
Yes, NFPA 701.
More Banner
Duratex

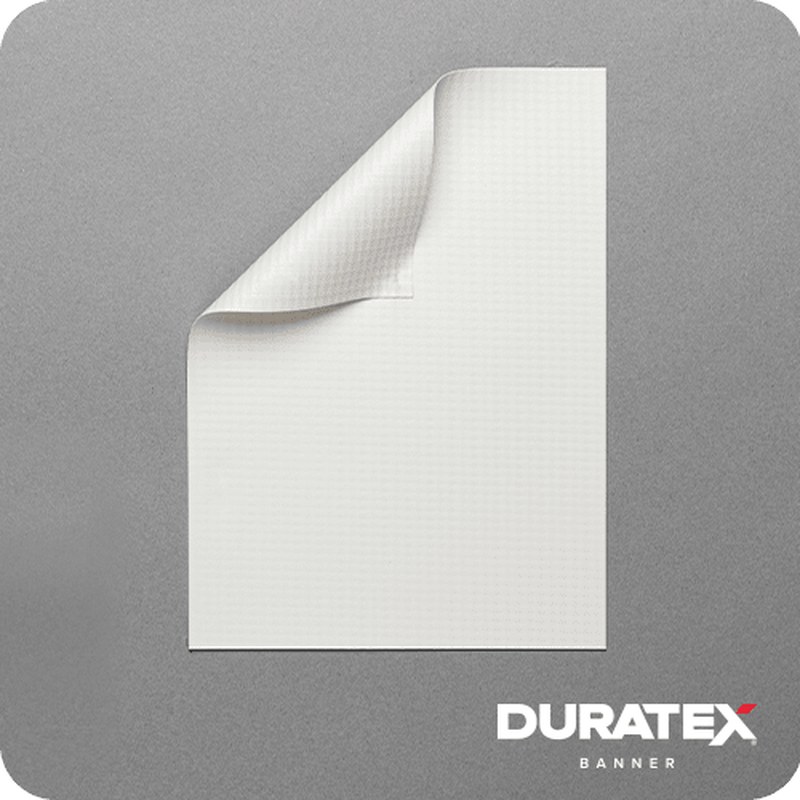

Duratex 13oz Forward Wound Banner
Duratex 13oz single-sided scrim banner, forward wound (print side out), NFPA 701, consistent white point. Indoor/outdoor, no laminate needed.
$190.92
Duratex

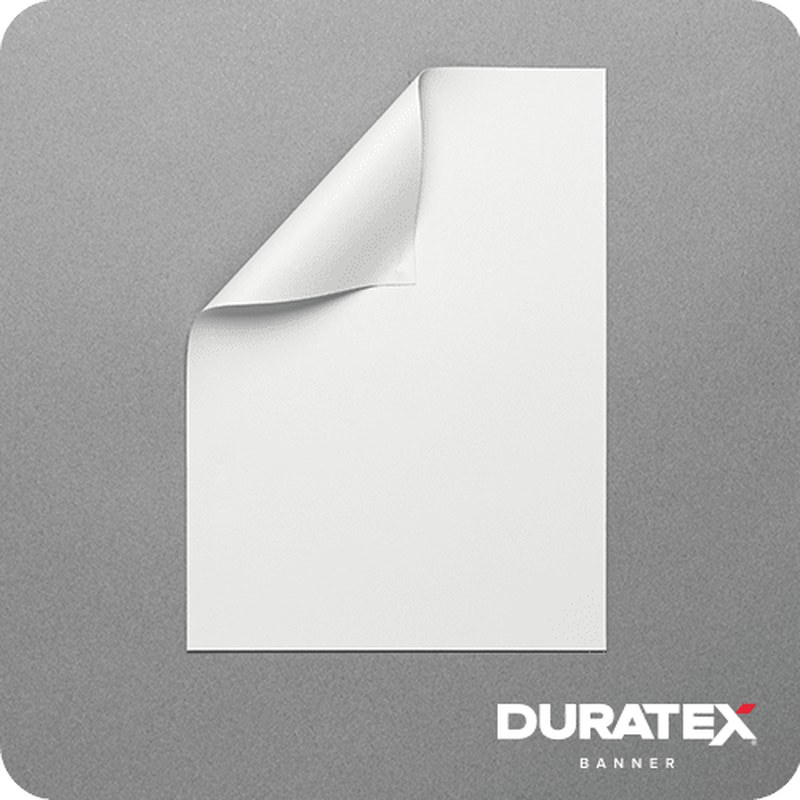

Duratex 15oz Double-Sided Smooth Banner
Duratex 15oz double-sided smooth blockout banner, matte, 300x300 denier, NFPA 701. Premium hanging banners. Use platen protectors on latex.
$440.99
Duratex

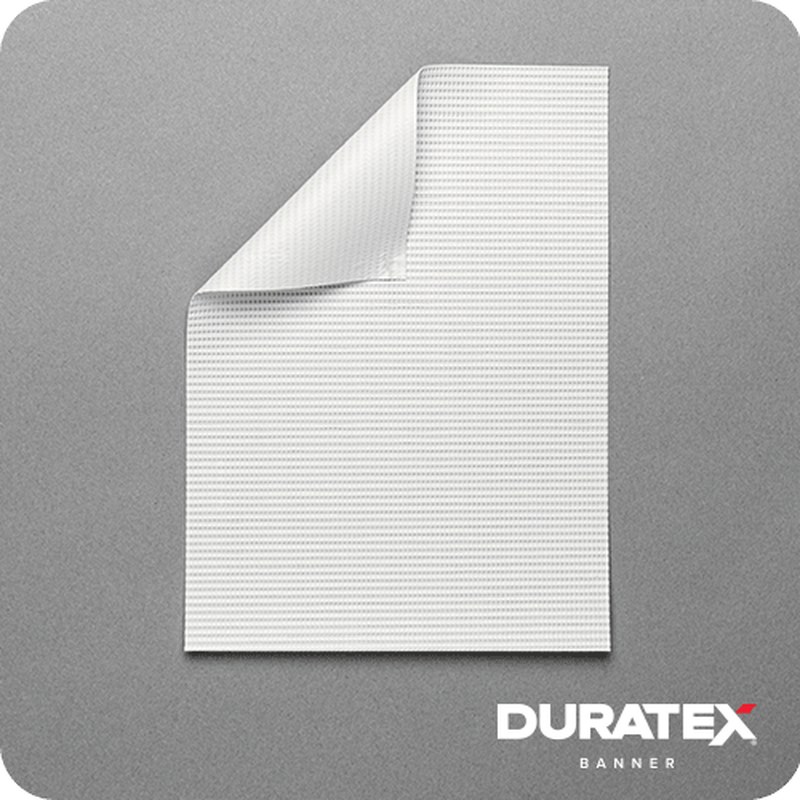

Duratex 8oz Mesh Banner with Liner
